Package Includes

  • Polycom HDX 4500
    - People+Content™, People+Content IP™, People on Content™, control pad and cables
  • Polycom HDX 4002
    - People+Content™, People+Content IP™, People on Content™ and cables

Video Standards & Protocols

  • H.264, H.264 High Profile IP, H.263++, H.261
  • H.239 / Polycom People+Content
  • H.263 & H.264 Video Error Concealment

People Video Resolution

  • 1080p 30 fps from 1024 Kbps (HDX 4500)
  • 720p, 60 fps from 832 Kbps (HDX 4500)
  • 720p, 30 fps from 512 Kbps
  • 4SIF/4CIF, 30 fps from 128 Kbps
  • 4SIF/4CIF, 60 fps from 512 Kbps
  • SIF (352 x 240), CIF (352 x 288)
  • QSIF (176 x 120), QCIF (176 x 144)

Supported PC Input Resolutions

  • 1920 x 1080, 1680 x1050, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600

Display – HDX 4500

  • 24” Widescreen LCD display
  • 1920 x 1080 native resolution
  • 16:9 aspect ratio
  • 2nd monitor output (DVI)
    - Supports up to 1080p display

Display – HDX 4002

  • 20.1” Widescreen LCD display
  • 1680 x 1050 Native resolution
  • 16:9 Aspect ratio

Camera

  • 1920x1080 video capture resolution (HDX 4500)
  • 1280 x 720 video capture resolution (HDX 4002)
  • 2X digital zoom
  • EPTZ camera control
  • Privacy shutter Speakers
  • Frequency range: 100 Hz – 20 kHz
  • Four built-in speakers (HDX 4002)
  • Two built-in speakers (HDX 4500)
  • Headset input for privacy

Audio Standards and Protocols

  • Polycom StereoSurround
  • 22 kHz bandwidth with Polycom Siren™ 22
  • 14 kHz bandwidth with Polycom Siren 14
  • Annex C
  • 7 kHz bandwidth with G.722, G.722.1
  • 3.4 kHz bandwidth with G.711, G.728, G.729A
  • Automatic Gain Control
  • Polycom Constant Clarity™
  • Polycom Siren™ LPR
  • Automatic Noise Suppression
  • Keyboard Noise Reduction
  • Live Music Mode
  • Instant Adaptation Echo Cancellation
  • Audio Error Concealment

Other Supported Standards

  • H.221 communications
  • H.224/H.281 far-end camera control
  • H.323 Annex Q far-end camera control
  • H.225, H.245, H.241, H.331
  • H.239 dual stream
  • H.231 in multipoint calls
  • H.243 chair control
  • H.460 NAT/firewall traversal
  • BONDING, Mode 1
  • BFCP (RFC 4562)

User Interface

  • Directory services
  • System management
    - Polycom Converged Management Application™ (CMA®)
    - Web-based UI
    - SNMP
  • CDR
  • International languages (17)
  • Wildcard language tool
  • USB software update Network
  • Interfaces – 2-port 10/100 auto NIC switch, RJ45 connectors
    - Auto-MDIX
    - RJ11 analog phone connector (HDX 4002)
  • H.323 and/or SIP up to 4 Mbps
  • RS232
    - Data pass-through
    - Closed caption
  • H.320 (optional) (HDX 4002 only)
  • Polycom Lost Packet Recovery™ (LPR™)
  • Reconfigurable MTU size (IP only)



  • Microsoft® ICE support
  • Microsoft® Lync™ support
  • Microsoft® Office Communications Server integration Security
  • Secure Web
  • Security mode
  • AES FIPS 197, H.235V3 and H.233/234
  • FIPS 140-2 Validation Certificate (#918)
  • IPv6 (DISA)
  • Secure password authentication

Опции

  • MPPlus internal multipoint software for up to 4 sites
  • Polycom Touch Control (HDX 4500 only)
  • Polycom HDX 4500 Remote Control
  • RTV / CCCP

Environmental Specification

  • Operating temperature: 0—40°C
  • Operating humidity: 10—80%
  • Non-operating temperature: -40°—70°C
  • Non-operating humidity (non-condensing): 10—90%
  • Maximum altitude: 10,000 feet Electrical
  • Auto sensing power supply
  • Typical operating voltage/power
    - 189VA @ 115V @ 60 Hz @ .67 PF
    - 192VA @ 230V @ 60 Hz @ .66 PF
    - 196VA @ 230V @ 50 Hz @ .65 PF

Physical Characteristics

  • HDX 4500
    - 20.5" (H) x 29.13" (W) x 8.22" (D)
  • HDX 4002 LCD with stand:
    - Display: 20.1" (H) x 21.9" (W) x 9.3" (D)
    - Base Box with removable stand:
    - 13.87" (H) x 5.08" (W) x 11" (D)

Warranty

  • One-year return to factory parts and labor

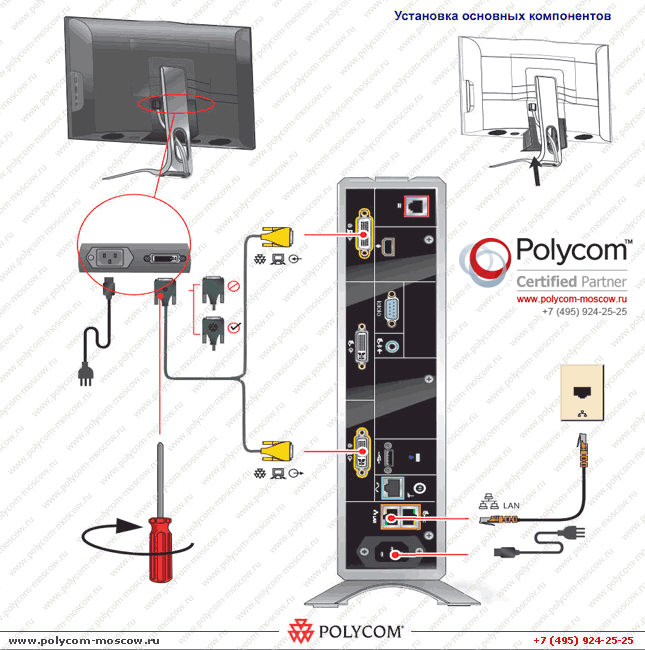

Polycom HDX 4002 setup

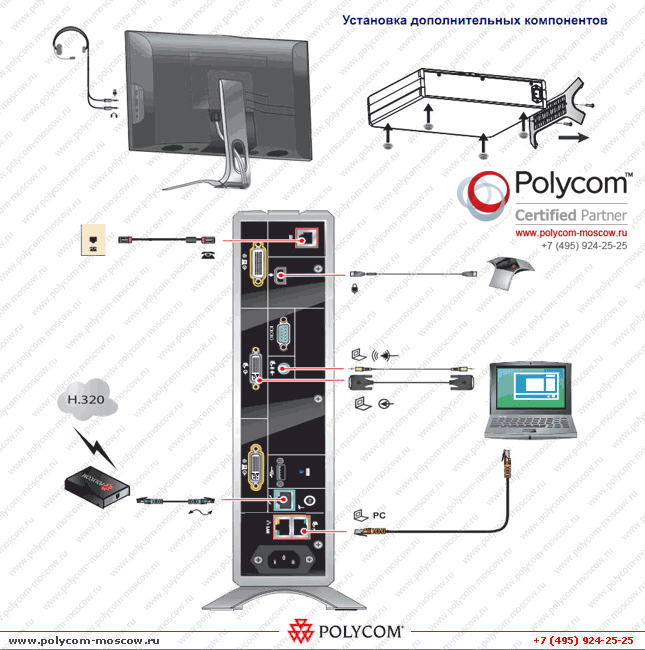

Polycom HDX 4002 setup options
